PRODUCT DETAILS

Description

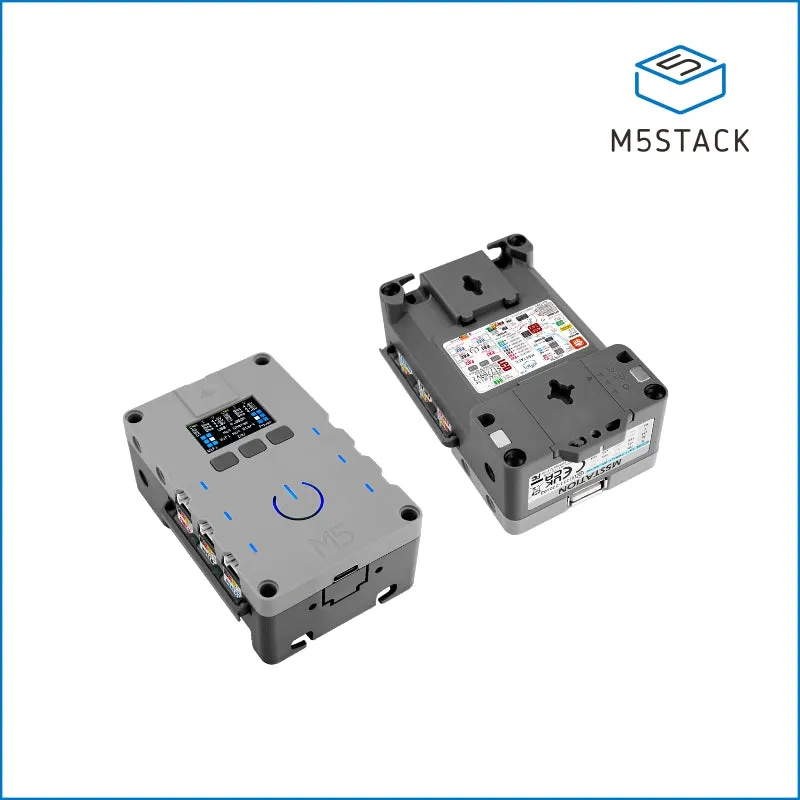

M5Station-BAT is a versatile industrial-level programmable embedded powered by the Espressif ESP32 SOC. With its integrated Wi-Fi solution and dual-core low-power Xtensa® 32-bit LX6 microprocessor running at a main frequency of up to 240MHz, the M5Station-BAT offers powerful performance to meet the demanding needs of industrial control, intelligent buildings, data acquisition, and prototyping applications.

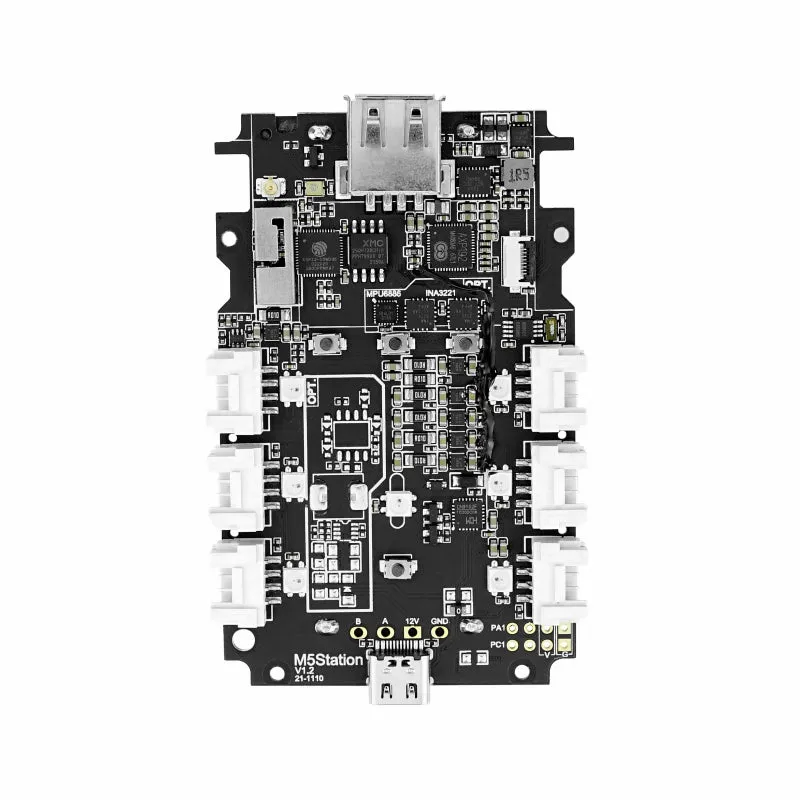

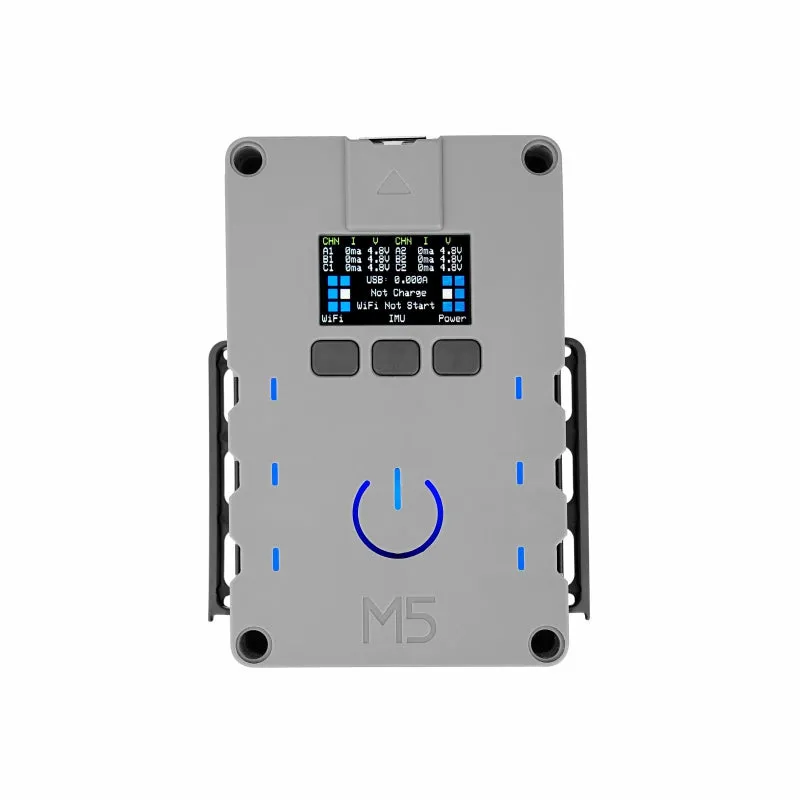

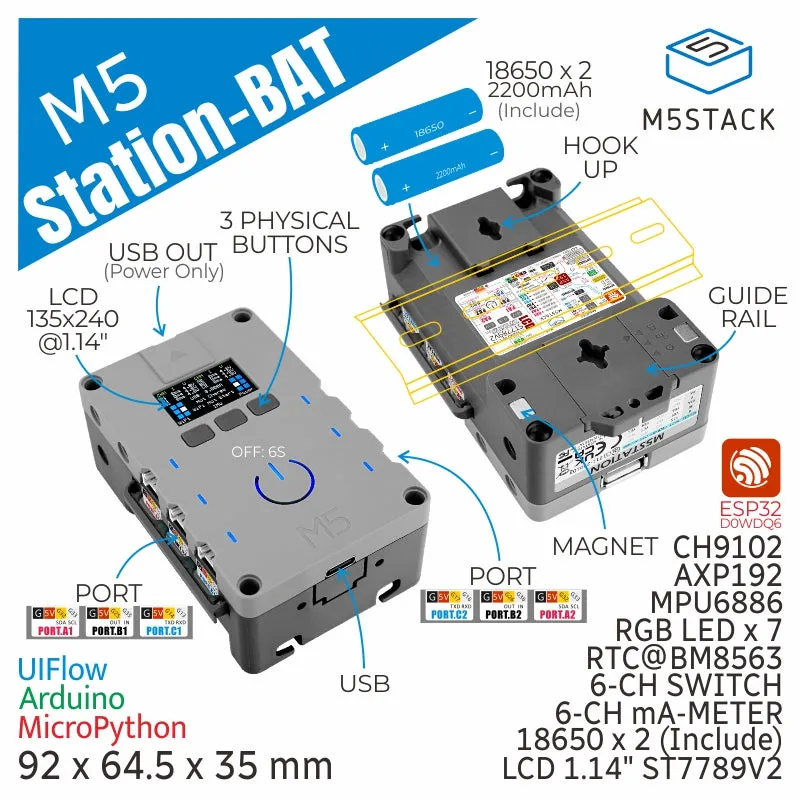

Equipped with 16M FLASH memory and a 240x135 1.14" full-color HD IPS display, the M5Station-BAT provides a vibrant and intuitive HMI (Human-Machine Interface). The physical keypad, along with rich peripherals such as the integrated 6-axis IMU MPU6886, three programmable keys, and seven programmable RGB LEDs, enhances the user experience and enables seamless interaction with the device.

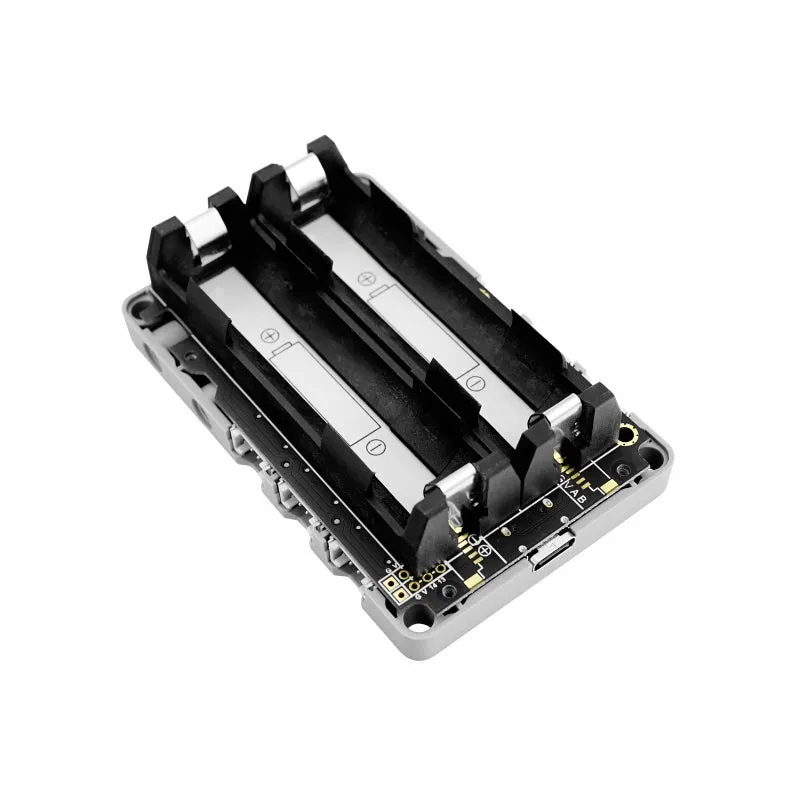

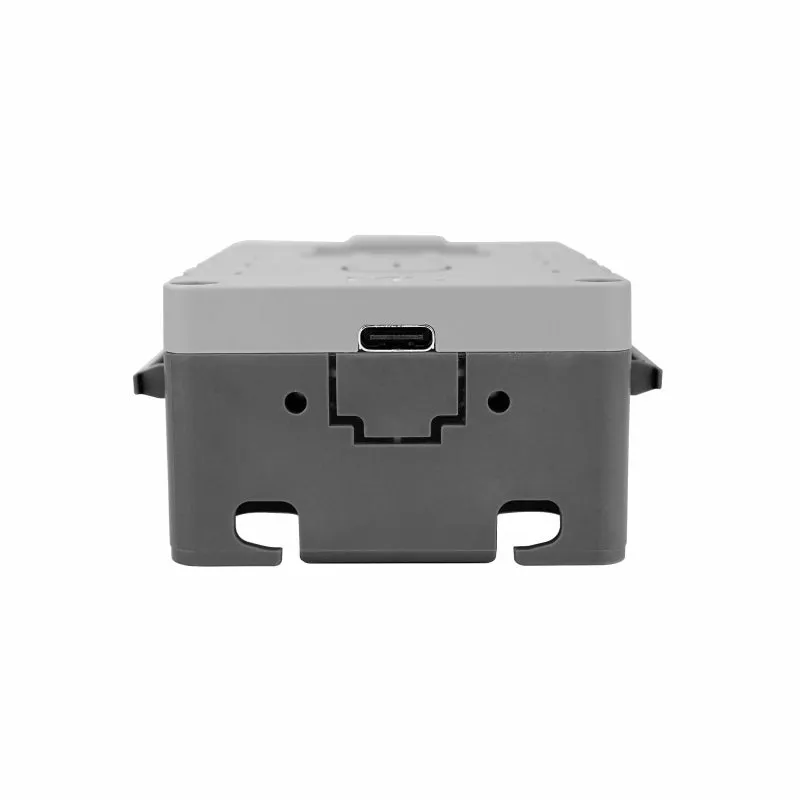

The M5Station-BAT supports two types of power supply: USB Type-C and an internal rechargeable 18650 battery (battery not included). Its integrated high power density boost DC/DC converter, SCT12A0DHKR, ensures stable operation even in complex applications. This makes it an ideal choice for industrial control systems, intelligent buildings, multi-channel data acquisition nodes, and prototyping applications.

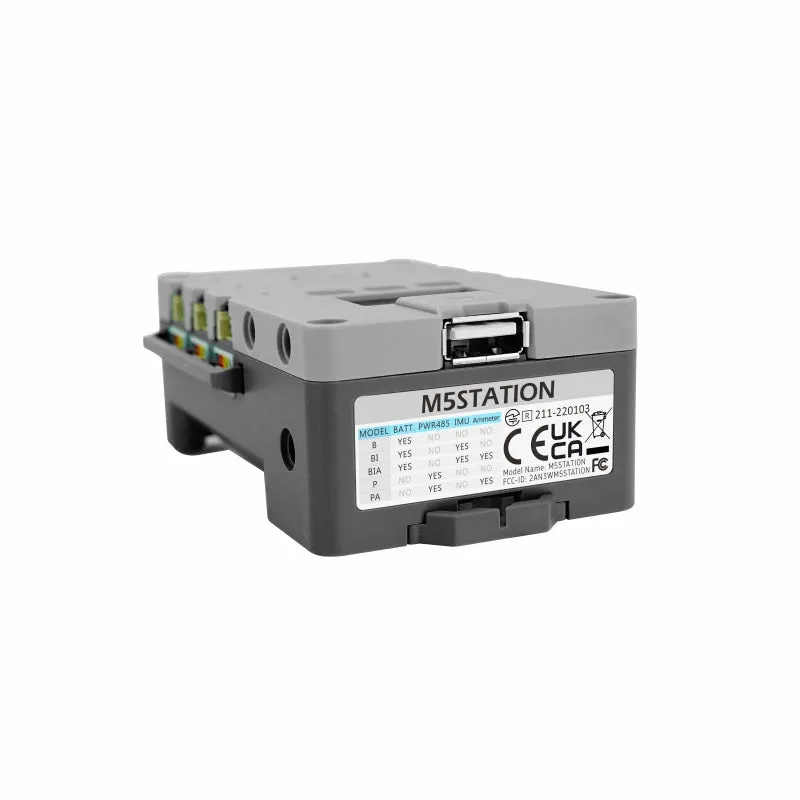

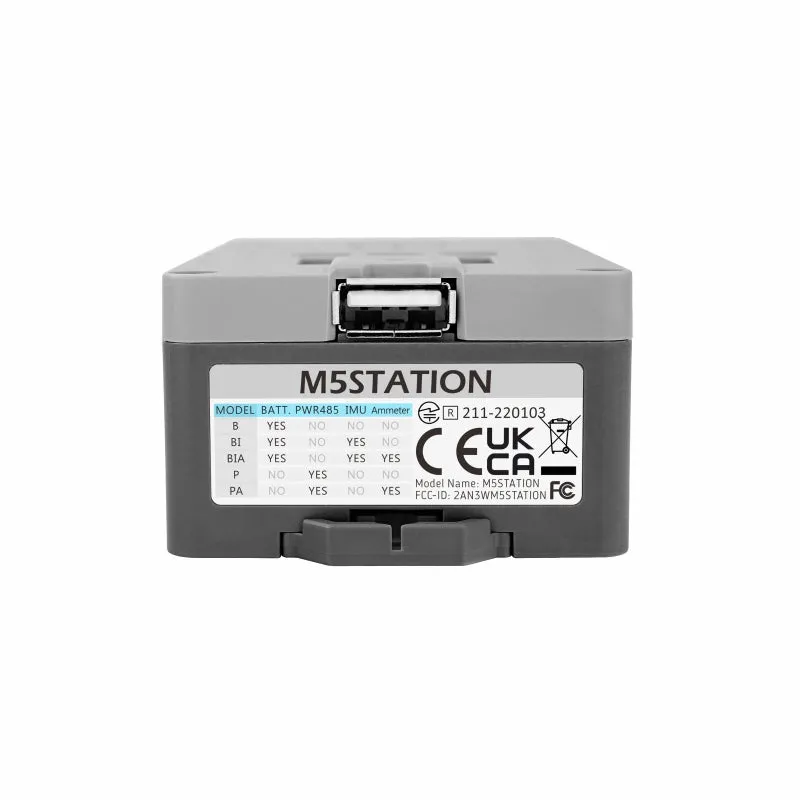

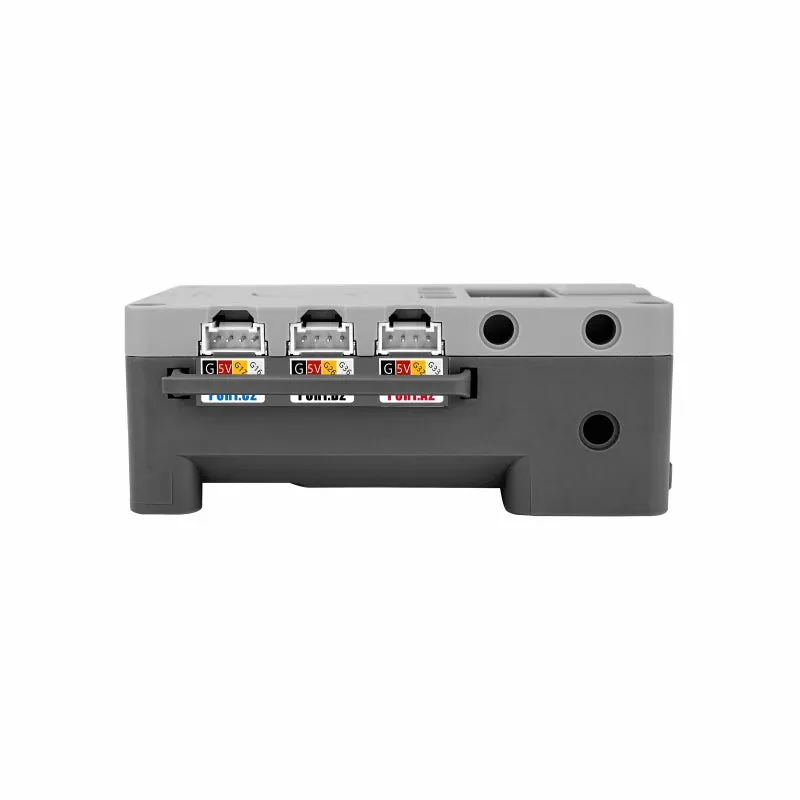

With a focus on power efficiency, the M5Station-BAT incorporates a low-power sleep/wakeup function enabled by the integrated RTC BM8563. The device's port design features six Grove expansion interfaces, with shared power and signal pins for Port A1/A2 and separate power and signal pins for Port B1/B2/C1/C2. It also includes a USB Type-A power supply output without signal pins.

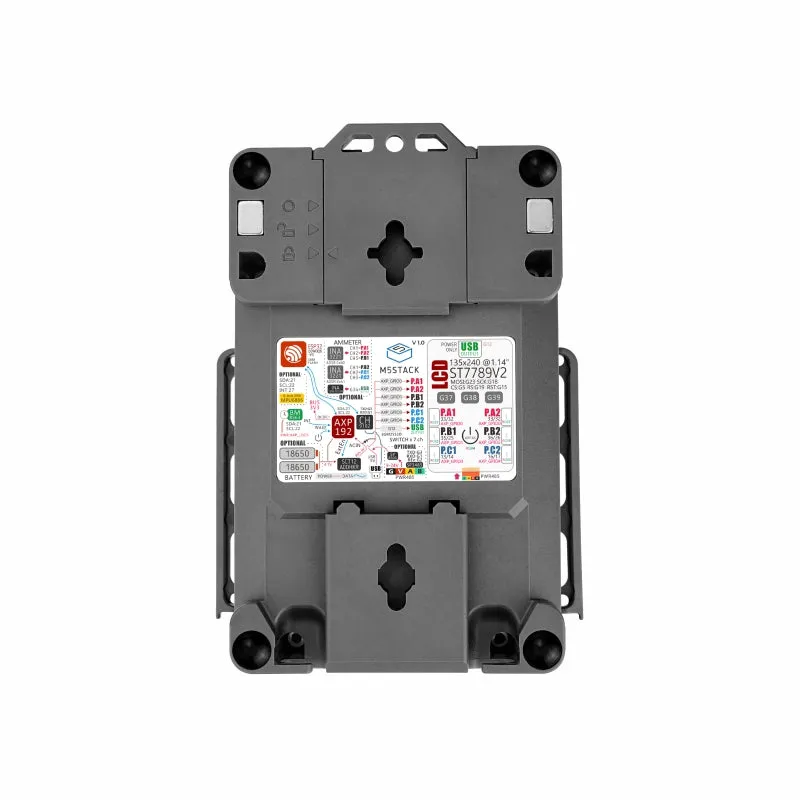

The M5Station-BAT offers a variety of mechanical design options, including DIN rail mounting, magnetic suction, wall mounting, screws, and ribbon attachments, ensuring flexibility for different installation requirements. In terms of programming development, the device supports the UIFlow graphical programming platform, scripting, and cloud push, making it easy to develop applications without the need for compilation. It is also fully compatible with popular development platforms like Arduino and ESP32-IDF, and supports FreeRTOS for efficient task management and program execution optimization.

Power Management

Operations:
Power on:Click the central power button
Power off:Press and hold the central power button for 4 seconds

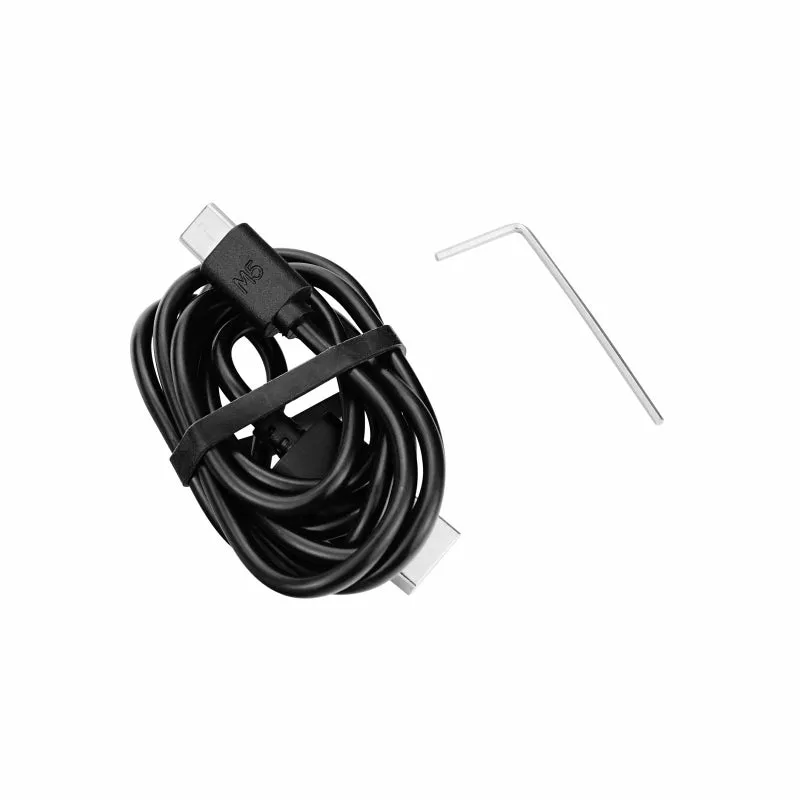

Contains

• 1x M5Station-BAT
• 1x Type-C USB (100cm)
• 1x Allen Wrench

Applications

• IoT controllers
• STEM Education
• DIY creations
• Smart Home Devices
• IoT product prototyping

Specification
