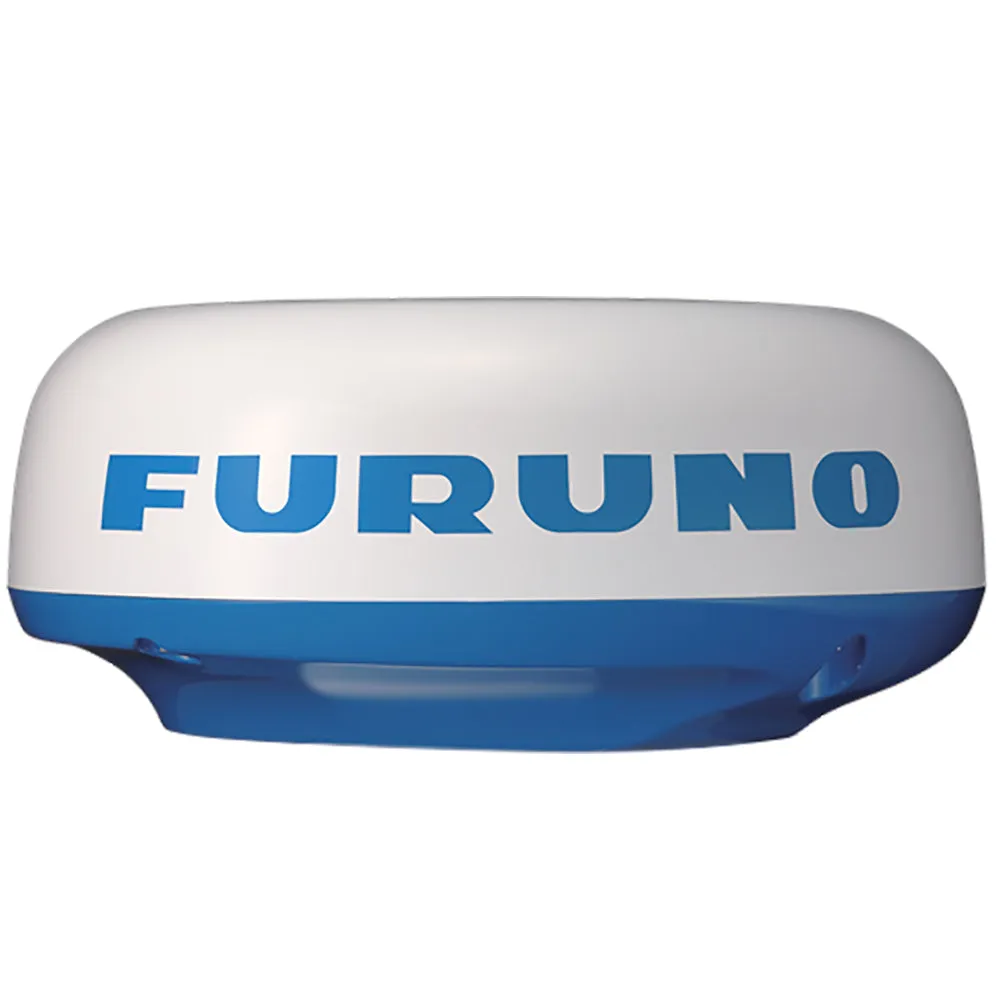

DRS4DL Radar Dome, 4kw, 19" 36NM

The DRS4DL is a , 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.

The DRS4DL spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.

Fast Target Tracking (TT) / ARPA on the DRS4DL manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple.

*heading sensor required

Features:

• Compact 19" 4kW / 24 RPM / 36NM UHD Radome
• 5.2° horizontal / 25° vertical beamwidth
• Ultra-High Definition (UHD) Digital Radar delivers crystal-clear targets
• "Fast Target Tracking" TT / ARPA provides heading and speed for up to 10 targets (*heading sensor required)
• Advanced auto-adjust settings for Gain/Sea Clutter/Rain Clutter
• Requires signal cable optional ( see accessories)
• 12-24 VDC supplied by ship's mains (no PSU required)
• Lightweight 5.7kg/12.5lbs design
• Low power consumption: 23 Watt TX / 10 Watt STBY
• IPX6 waterproofing & -25°C to 55°C environmental rating
• Compatible with NavNet TZtouch (v5.01 or higher) & TZtouch2 (v5.02 or higher)

Specifications:

• Array Size (Inches): 19"
• Power - Output: 4kW
• Range - Max (Miles): 36nm
• Box Dimensions: 11"H x 21"W x 21"L WT: 17.8 lbs
• UPC: 611679372024
