Product Details
＋

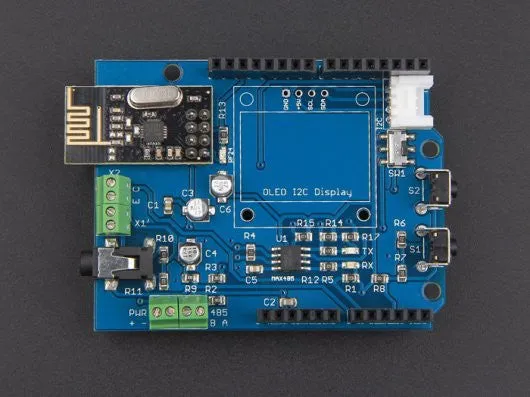

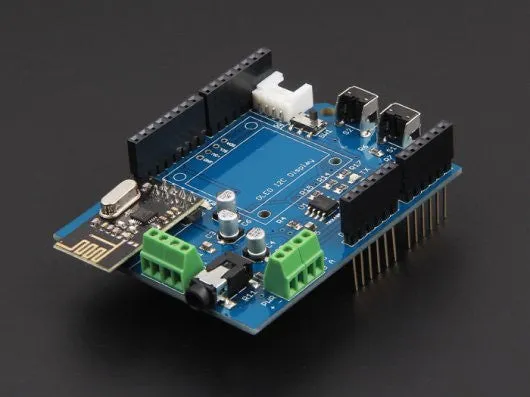

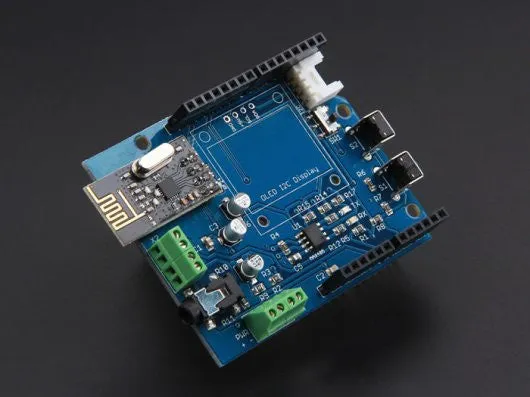

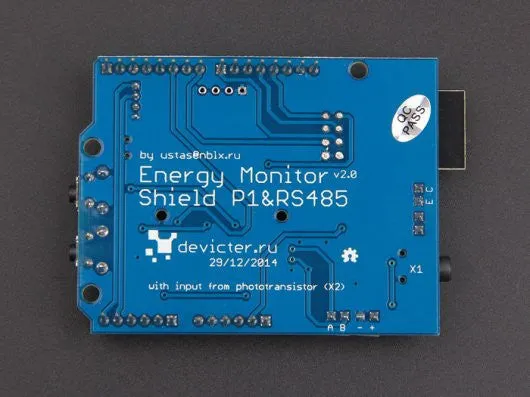

Energy Monitor Shield V2 is Arduino-compatible expansion card designed for building energy monitoring system with the ability to connect I2C OLED-display and built-in wireless transceiver nRF24L01 . Unlike version 1, has on-board interface phototransistor to read data from the built-in LEDs of different counters and interface RS485.
Features:
- Connecting one sensors AC (30-100A)
- Support I2C OLED-display
- Terminal for connecting the phototransistor VTT7122H

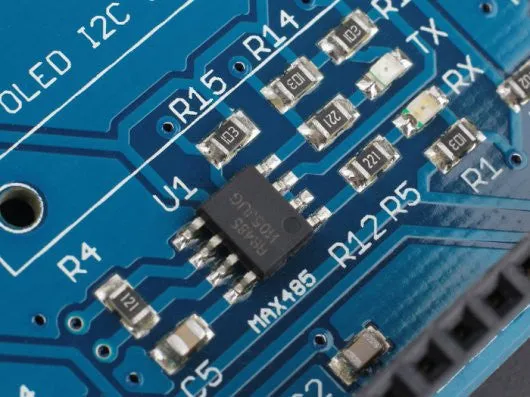

- Interface RS485
- Two buttons to control (enabled one analog pin)

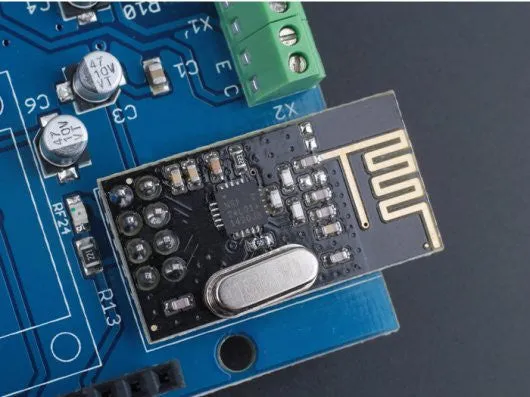

- Transceiver for 2.4G nRF24L01 soldered on the motherboard
- GROVE-compatible connector: I2C
- Fully compatible with Ethernet Shield (Wiznet 5200 SD)
Part List:
Energy Monitor Shield V2 P1 X 1
