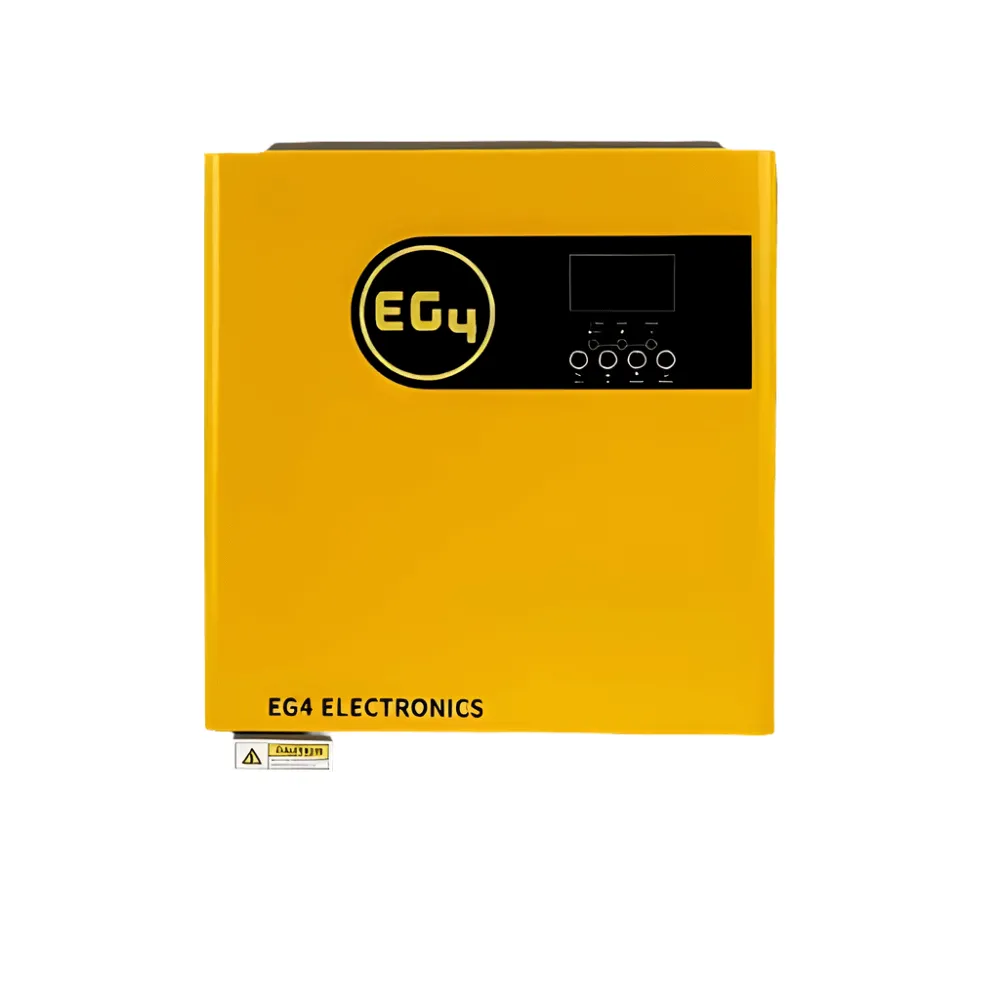

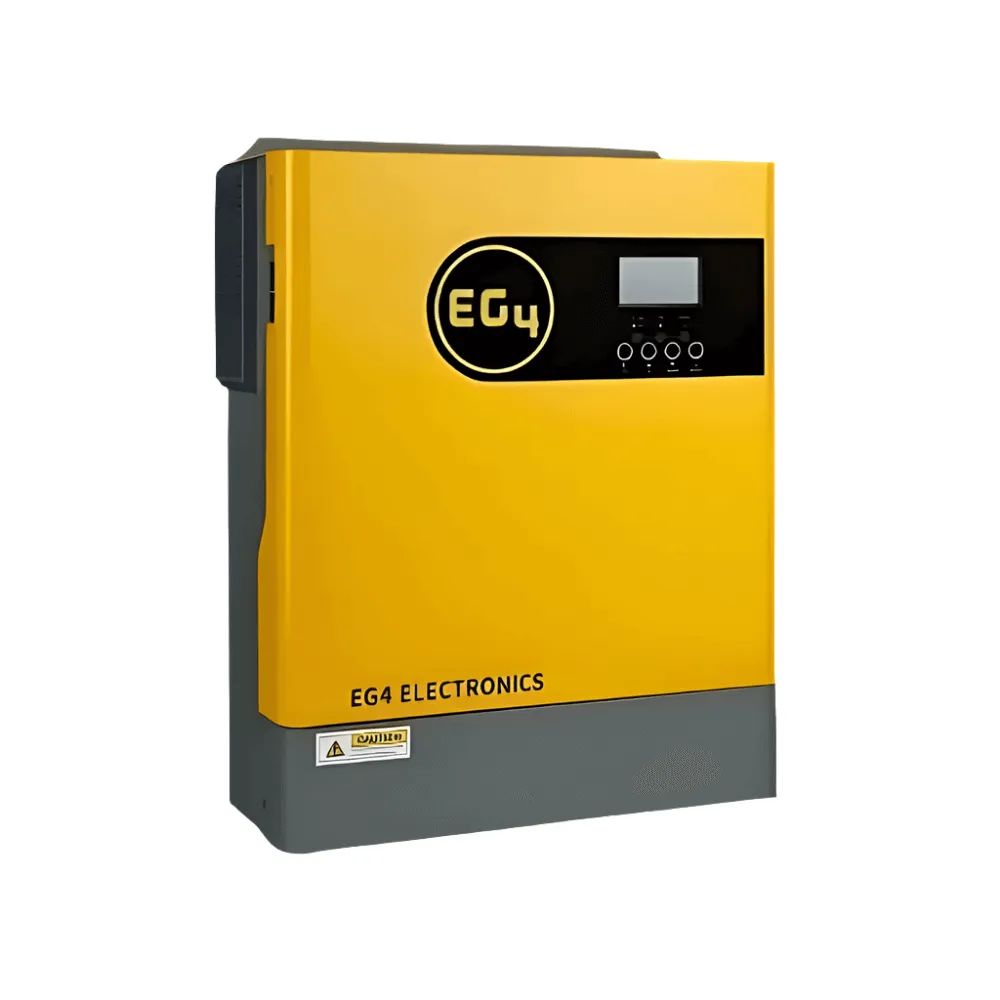

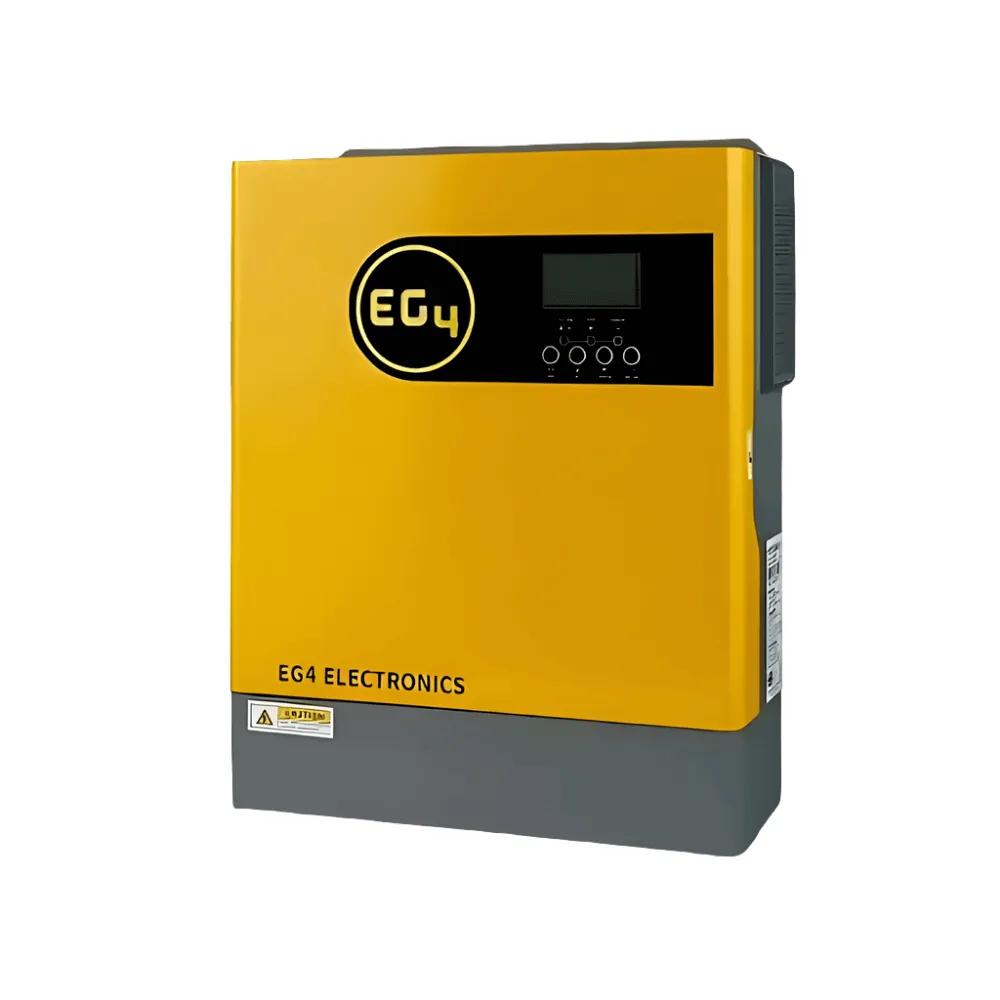

EG4® 3000EHV-48 - Your Comprehensive All-In-One Off-Grid Power Solution

The EG4 3000EHV-48 seamlessly integrates a powerful 3000W inverter, an efficient MPPT solar charger, and a reliable battery charger into one versatile unit. Designed for off-grid applications, it provides uninterrupted power support to your system, ensuring you have a steady and reliable energy source. With a comprehensive LCD display for easy customization and support for parallel connections, the EG4 3000EHV-48 is your ultimate solution for safe and efficient power management.

EG4 3000EHV-48 All-In-One Off-Grid Inverter Highlights

• Integrated Power Solutions: Combines the functionalities of a 3000W inverter, MPPT solar charger, and battery charger, all in a single, compact package.
• User-Friendly Interface: The comprehensive LCD display allows you to easily customize settings for battery charging, charger priority, and input voltage to suit your system’s needs.
• Parallel Connection Support: Supports parallel connection of up to 12 units, allowing you to achieve a maximum of 36kWs of continuous AC power, enhancing scalability and flexibility.
• Advanced Protection Features: Equipped with overload, over-temperature, and short circuit protection to ensure the safety and reliability of your power system.

Key Specifications

• DC Input Voltage Range: 120VDC – 450VDC
• Number of MPPTs: 1
• MPPT Efficiency: 97%
• Dimensions: 17.6” x 11.6” x 4.1” (44.7×29.5×10.4cm)
• Weight: 21.6 lbs. (9.8kg)
• Parallel Capability: Connect up to 12 units for a total of 36kWs of continuous AC power.

Features

• Versatile All-in-One Design: Combines inverter, MPPT solar charger, and battery charger functionalities in a compact and efficient unit.
• Enhanced Connectivity: Features larger battery terminal connections supporting up to 2 AWG for improved connectivity.
• Customizable Settings: User-friendly LCD display enables easy configuration of battery charging parameters, charger priority, and input voltage settings.
• Bonus Accessories Kit: Includes essential accessories such as a Wi-Fi adapter, UL-listed breaker, and battery cables for added convenience.

Downloads

Efficiency and Performance

• Superior MPPT Efficiency: Achieves 97% MPPT efficiency, ensuring optimal power conversion from your solar panels to your battery bank.
• Robust Construction: Designed with high-quality materials for durability and long-lasting performance.
• Idle Consumption: Minimal self-consumption to maximize power availability for your essential needs.

Monitoring and Management

• EG4 Monitoring App: Monitor and manage your system seamlessly using the EG4 monitoring app available on Google Play and the App Store.
• Connectivity Options: Supports Wi-Fi, 4G, and LAN connectivity for flexible monitoring solutions.
• RS485 Communication: Ensures reliable data transmission and system control.

Certifications and Compliance

• UL Certified: Complies with UL standards for safety and reliability.
• Ingress Protection Rating: Designed to withstand challenging environmental conditions with a robust IP20 rating.

Optimize your off-grid power system with the EG4 3000EHV-48 All-In-One Off-Grid Inverter. Experience unmatched efficiency, reliability, and ease of use with this comprehensive power solution from EG4.
