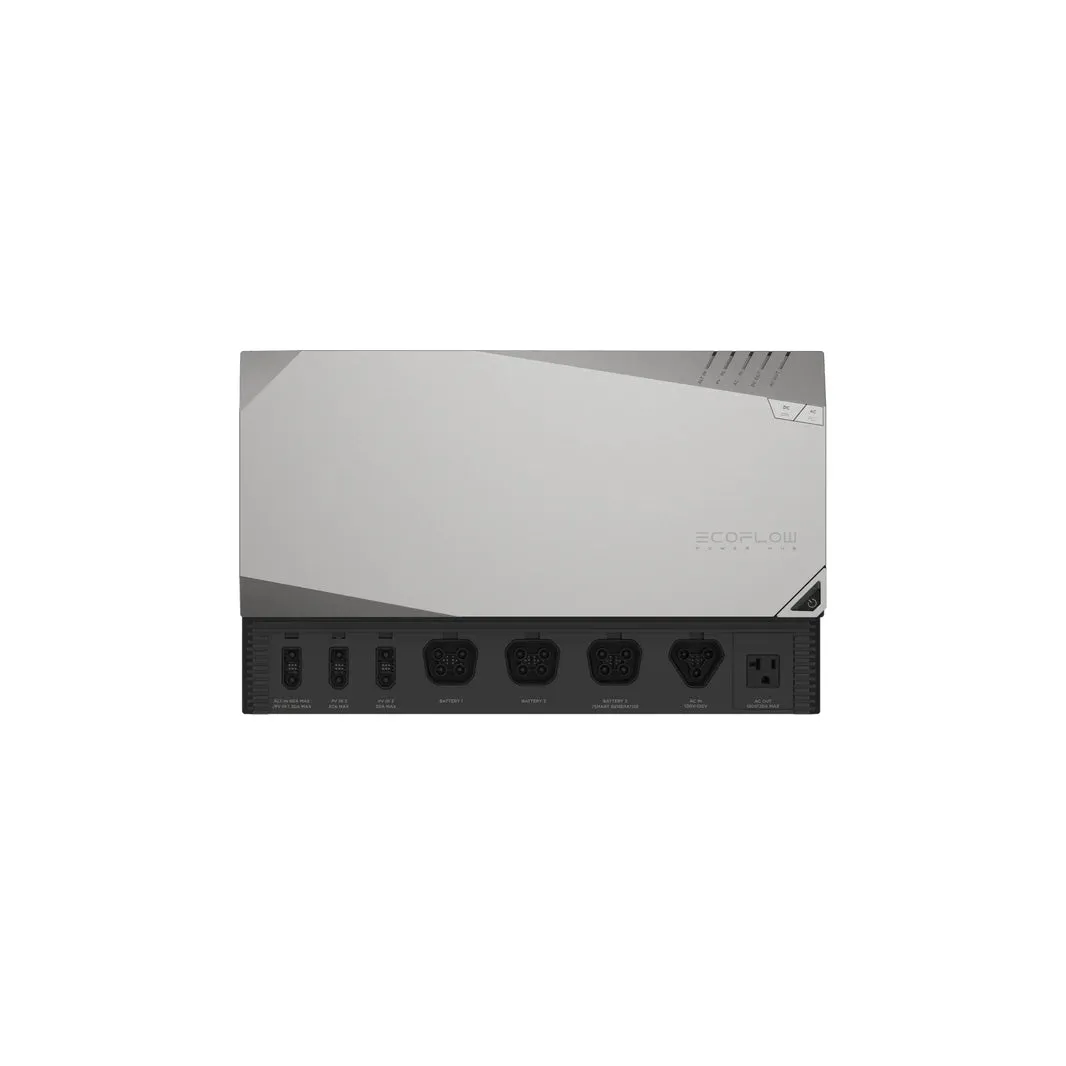

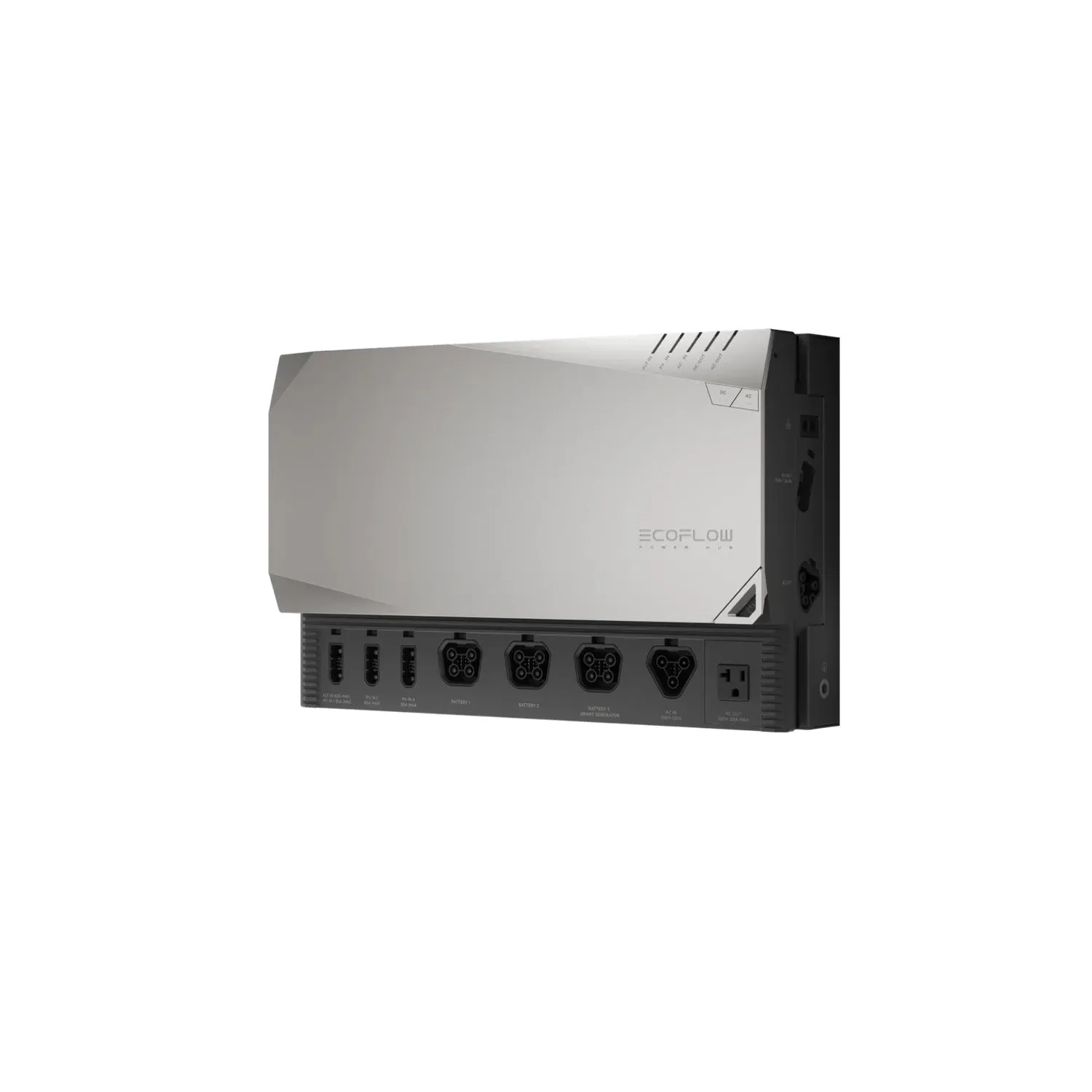

EcoFlow Power Hub Overview

The EcoFlow Power Hub is a dynamic power management solution that can be used as a central power hub for a variety of scenarios, including:

Recreational Vehicles
Off-Grid Builds
Partial Home Backup Power
Whole Home Backup Power

A highlight of this power hub is its 5-in-1 component feature, which includes:

2 MPPT solar chargers
1 DC-DC battery charger with MPPT
1 Inverter-charger
1 DC-DC converter

The Power Hub also features a 3600W AC output, which can be used to power a wide range of devices, including refrigerators, air conditioners, and power tools. It also has two MPPT solar charging ports, which can be used to charge the Power Hub from solar panels.

The Power Hub has a smart controller with app control, which allows you to monitor and control the Power Hub remotely.

The Power Hub is a great choice for anyone who needs a reliable and versatile power management solution. It is compact and portable, making it easy to take with you wherever you go. It is also strong enough to power your essential devices, even during an emergency.

What's In The Box

1 x EcoFlow Power Hub
1 x 6m/20ft Solar Charging Cable
1 x Mounting Kit (back)
2 x Mounting Kit (top/bottom)
2 x RJ-45 CAN Bus Terminator
13 x M4.8*25 Screws
8 x M5*10 Screws
1 x User Manual
1 x Warranty Card
1 x Quick-Start Guide

EcoFlow Power Hub Specifications

General Specifications

Net Weight: 14 kg | 31 lbs
Dimensions (L × W × H): 480 mm × 140 mm × 300 mm | 18.9" x 5.5" x 11.8 in
Wi-Fi: Supported (<120 Meters)
Bluetooth: (v4.0) Supported (<15 Meters)

Output Specifications

AC Main Output: Pure sine wave, 3600 W (surge 7200 W, 100 ms), 120 V, 60 Hz
AC Standard Output: 120 V 20 A
Maximum AC Output Supported by X-Boost: 5200W
DC Output: 13.6 V 70 A, maximum power: 1000 W or 26.4 V 60 A, maximum power: 1600 W

Input Specifications

AC Input Power: 3000 W maximum power, 30 A maximum current, supported by EcoFlow X-Stream Technology
AC Input Voltage:100–120 V, 50 Hz/60 Hz
Alternator Input 2/3 PV Input: 2/3 13–60 V 30 A, maximum power: 1600 W 15–60 V 30 A, maximum power: 1600 W
Alternator Input 1 PV Input 1: 13–60 V 60 A, maximum power: 1600 W 15–60 V 30 A, maximum power: 1600 W

Battery Port Specifications

Battery Port x 3: 40-60 V 100 A, supports up to three 2kWh or 5kWh LFP batteries, which are sold separately.(Not recommended to use one Power Hub with both EFM100-BPB and EFM100-BP at the same time.)
