| Product Attribute | Attribute Value |
|---|---|
| Current Consumption | 38mA |
| Display Type | 4-1/2 Digit LCD |
| Enclosure Type | NEMA 4X |
| IP Rating | IP66 |
| Measurement Range | 15 psi |
| Measurement Units | psi |
| Mounting Type | 1/4 in NPTM |
| Output | 4-20 mA |
| Package Type | Cylinder |
| Pressure, Operating | 0 to 15 psi |
| Series | |
| Size, Port | 1/4" NPT |
| Standards | CE; Optional: NSF/ANSI 61/372, ANSI/UL 218, ANSI/UL 508, NEPA 20 |
| Temperature, Ambient | -18 to 79°C |
| Termination | 1/4 in NPT/BSPT |
| Type | Gauge |
| Voltage Rating | 10 to 30 VDC |
Overview

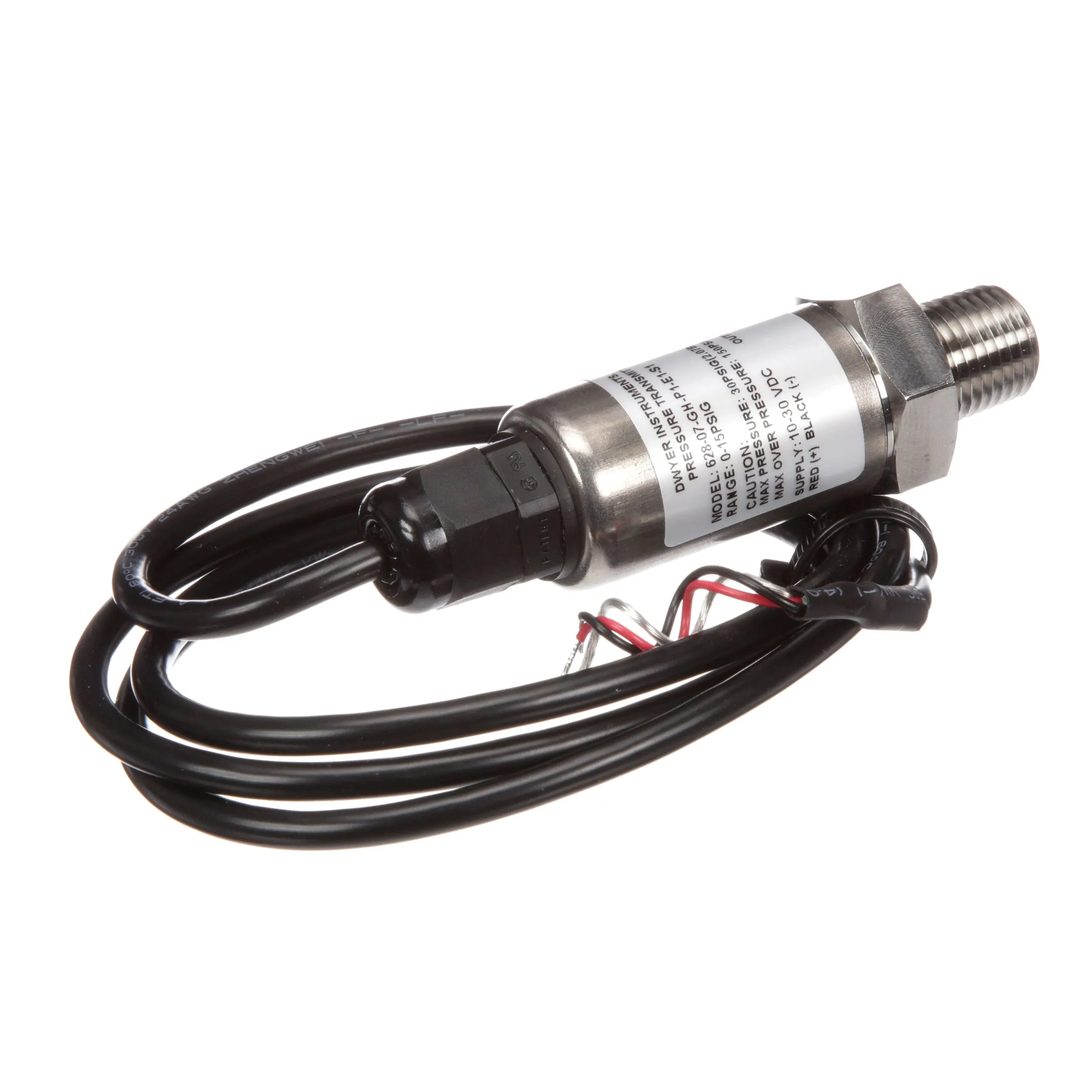

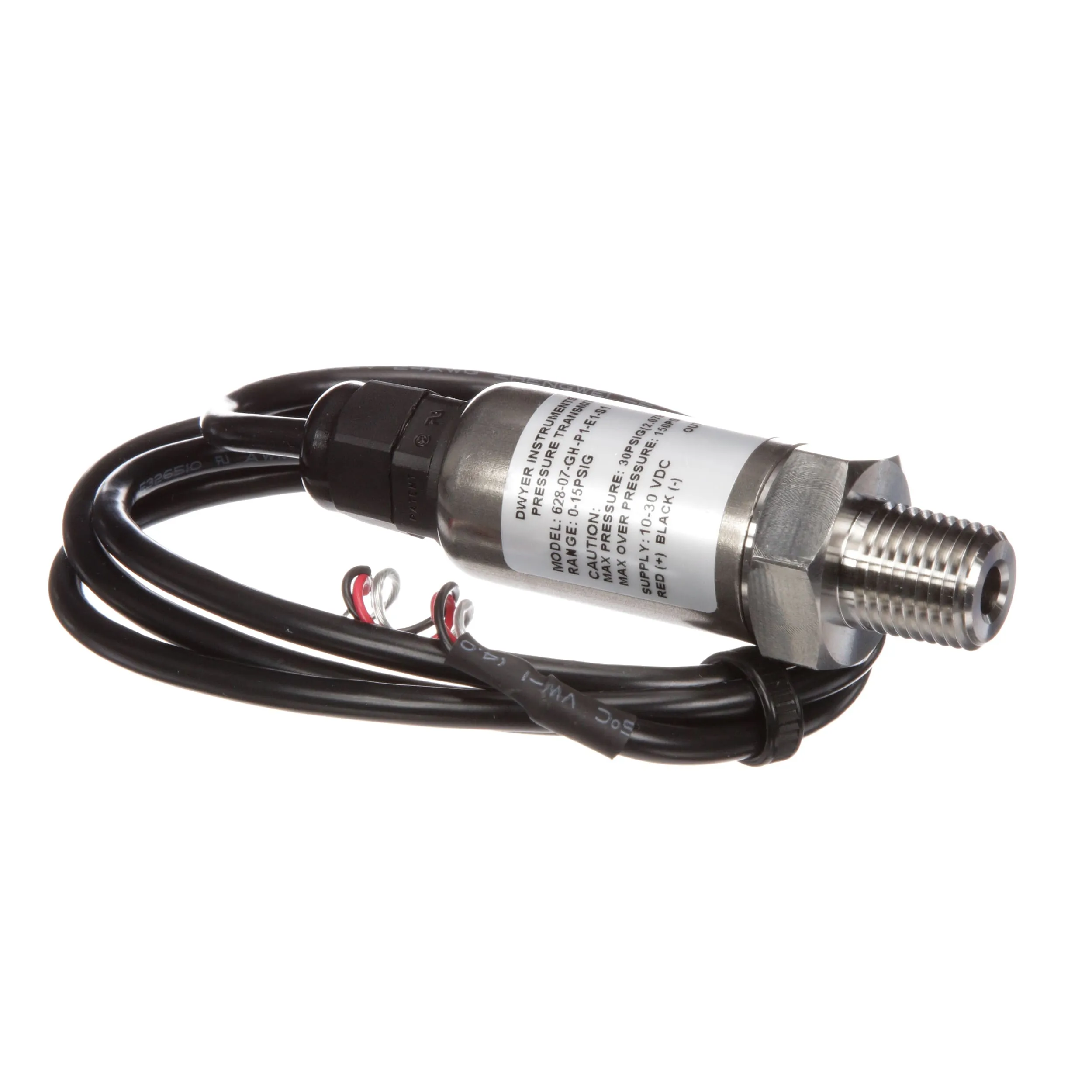

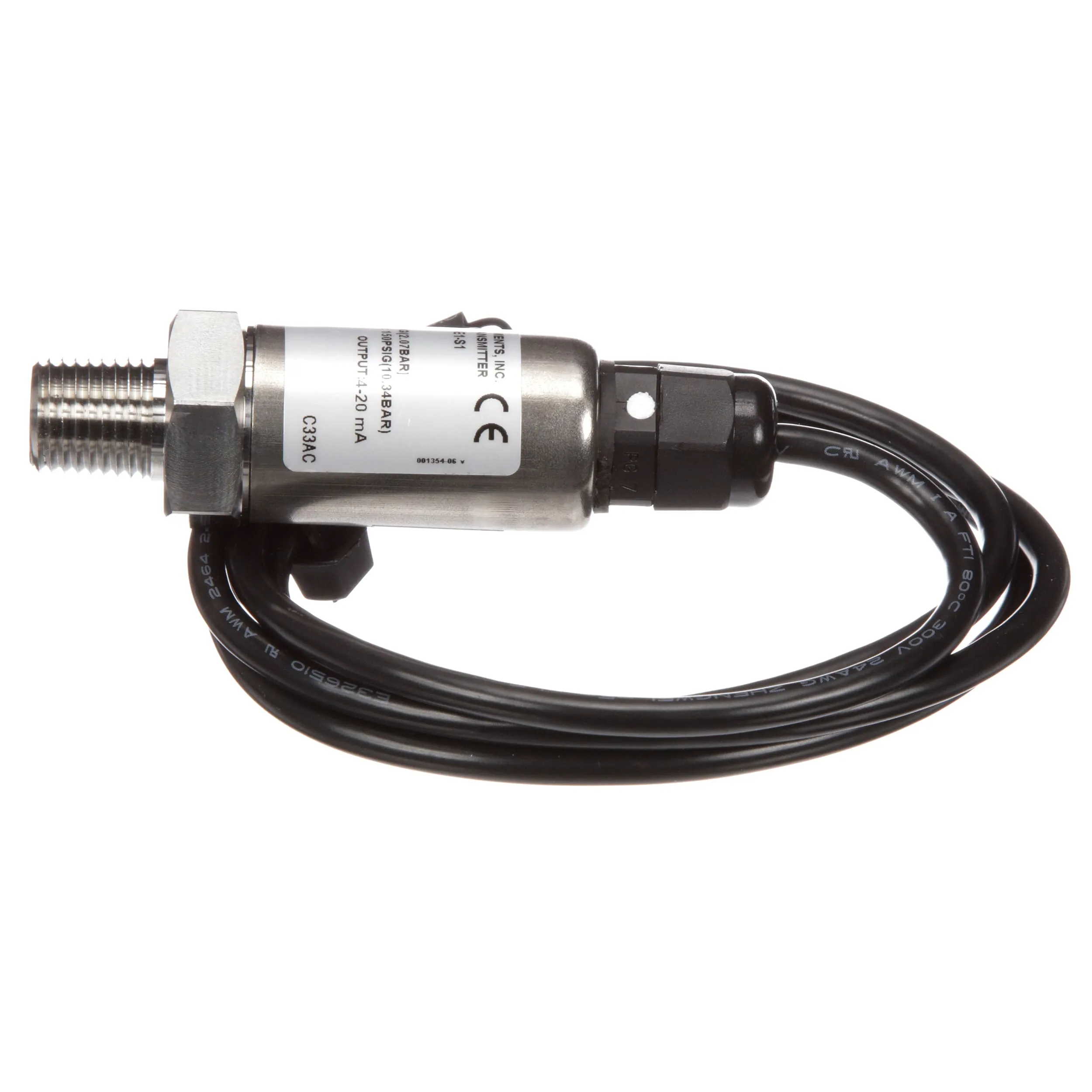

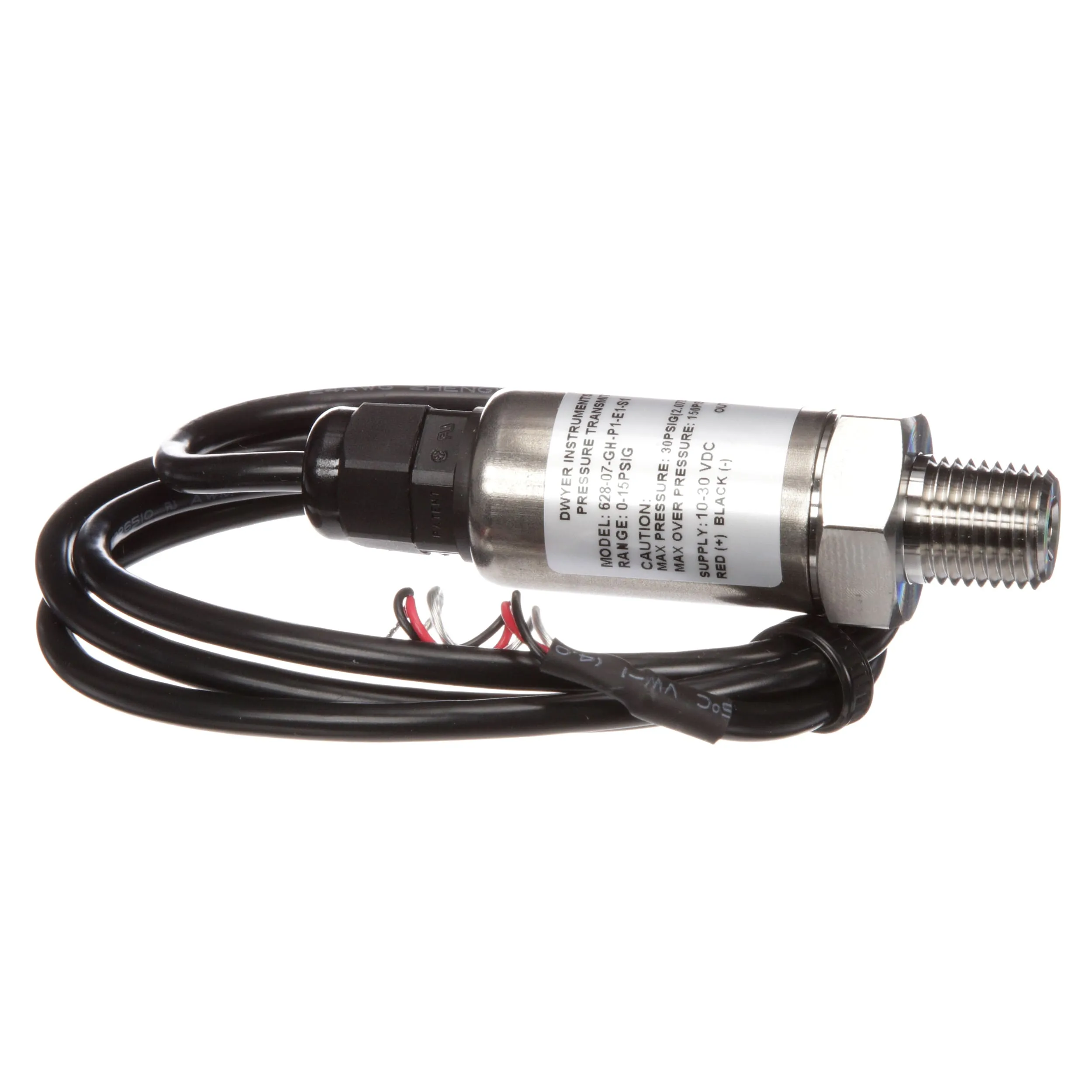

Dwyer 626 & 628 Series Industrial Pressure Transmitter:
The 628 Series Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.
The 626 Series Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.
