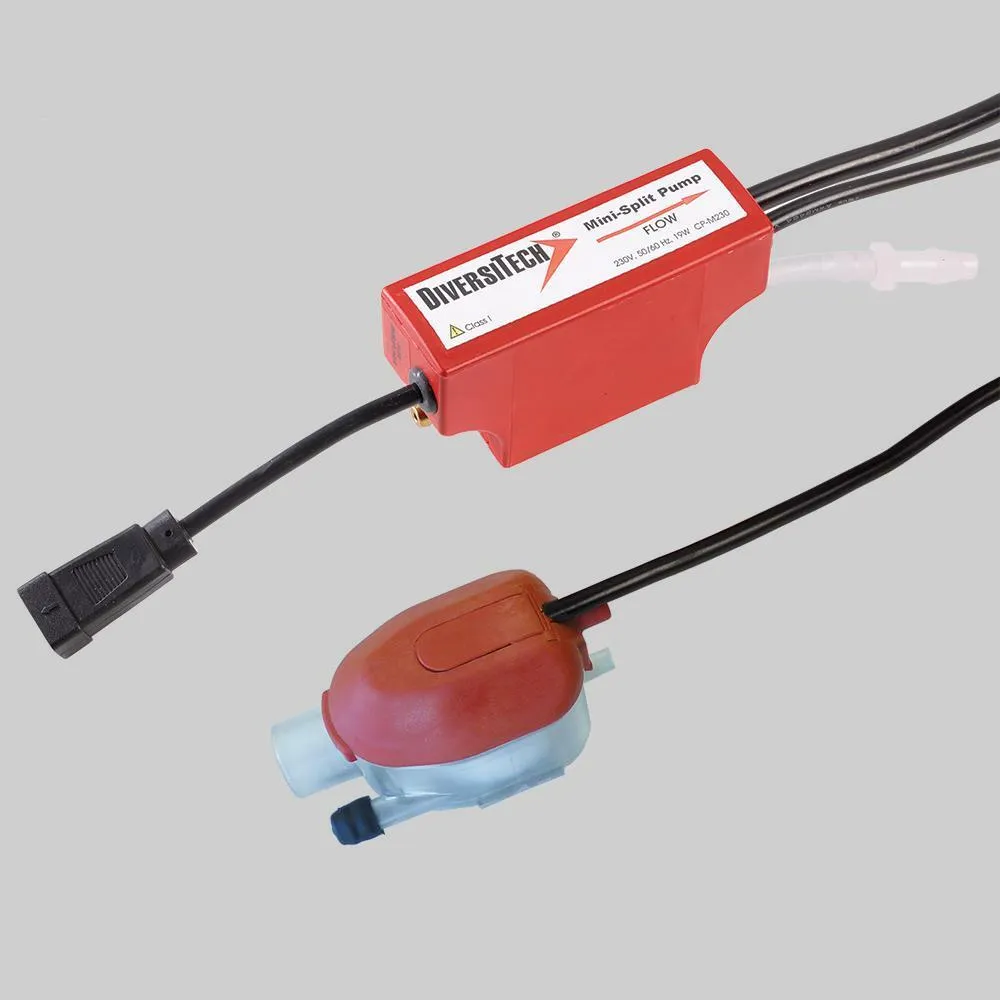

DiversiTech Asurity™ CP-M230 Mini-Split Condensate Pump, 230V
Products usually ship within 1 business day.
The Asurity™ CP-M230 Mini-Split Condensate Pump is a quiet, compact, and feature rich pump. The 230 volt pump's low profile fits easily into most line set covers and cassettes. Asurity™ - Your Complete System for Condensate Management. This product was made by DiversiTech®.
- Compact Size
- Flexible installation options. Fits inside line set covers or inside cassette
- Clear Reservoir
- Dual Outlet Reservoir
- Reservoir Mounting Plate
- Up to 6' Suction Lift - 24' Total Lift
- For systems up to 2.8 tons (34,000 BTUs - 10kW)
- Quiet, <21dB(A)
- Thermally Protected
- Built-In Overflow Switch - SPDT Alarm Circuit
- ETL Listed
- Water Resistant Sensor Cable
SPECIFICATIONS
| Rated Voltage: | 220 - 240VAC |
| Hz: | 50/60Hz |
| Watts: | 19 |
| IP: | IP64 |
| Duty Cycle Rating: | 70% |
| Sound: | <21 dB(A) at 3.3' |
| Overflow Switch: | 5A @ 250VAC Resistive |
| Working Temperature: | 41°F to 113°F (5°C to 45°C) |
| Storage Temperature: | 37°F to 158°F (3°C to 70°C) |
| ETL: | 4000786 (Conforms to UL STD 778) |
| CSA: | C22.2 NO. 108 |
