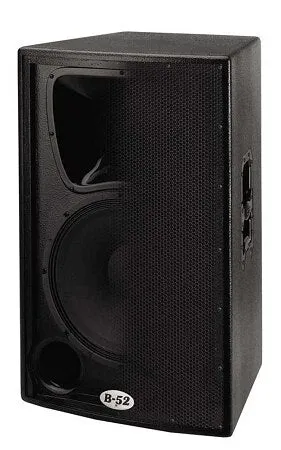

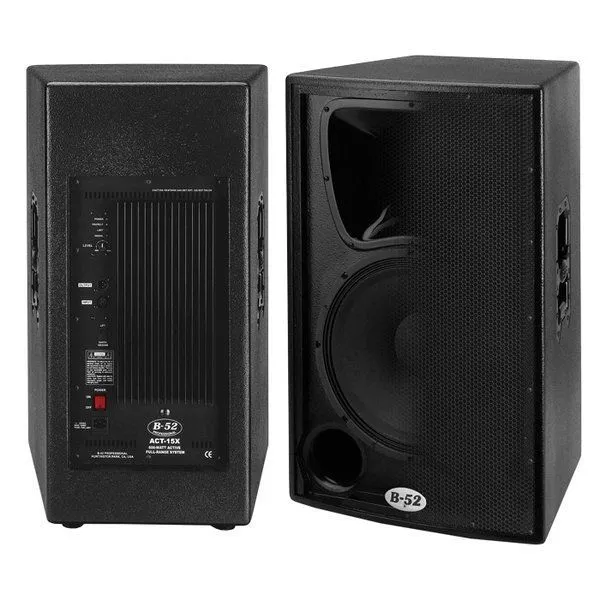

The ACT-15X is a 600-watt single 15” two-way, ideal for use by itself or with an ACT-Series subwoofer for a powerful full-range system. Available in your choice of roadworthy black paint or black carpet finish.



The ACT-Series full-range systems are capable of producing rich, clear, sound at extreme SPLs. The ACT amplifiers employ sophisticated circuitry including four stages of equalization, a built-in compressor/limiter and short circuit/over-current protection. The ACT-Series has an extra high current output stage, which sets it apart from the competition, allowing for uninterrupted extended play



• Class H amplifier with 2-stage power supply
• 600 watts @ 8 ohms
• Max system SPL: 130dB
• Frequency response: 40-19K Hz
• Amplifier rated THD: 0.03%
• Built-in compressor/limiter
• 4-stage loudspeaker equalization
• Amplifier S/N ratio > 100dB A-weighted
• Amplifier damping factor > 800
• Subsonic Filter: 24 dB/octave @ 30 Hz
• Power requirements: 115V/230V 60/50 HZ factory configured
• XLR balanced inputs (Pin 2 = )
• XLR full range output
• Amplifier thermal & short circuit protection
• Signal sensing circuitry with LED indicators
• Oversized convection cooled heatsink for worry-free operation

The highly sophisticated compression circuitry in the ACT-15 allows for impressive SPLs while minimizing the risk of damage to either the amplifier or loudspeakers. The four-stage equalization network built into the amplifier acts as the perfect complement to the system’s loudspeaker components.



• Made in U.S.A
• 13-ply Baltic birch contruction
• Heavy-duty scratch resistant durable black paint finish
• Steel pole-mount cup
• 16-gauge perforated steel grille for maximum protection
• Aeroports lower distortion and increase output
• Dimensions (W) x (H) x (D): 19.75” x 32” x 18.5”
• Weight: 95 lbs
