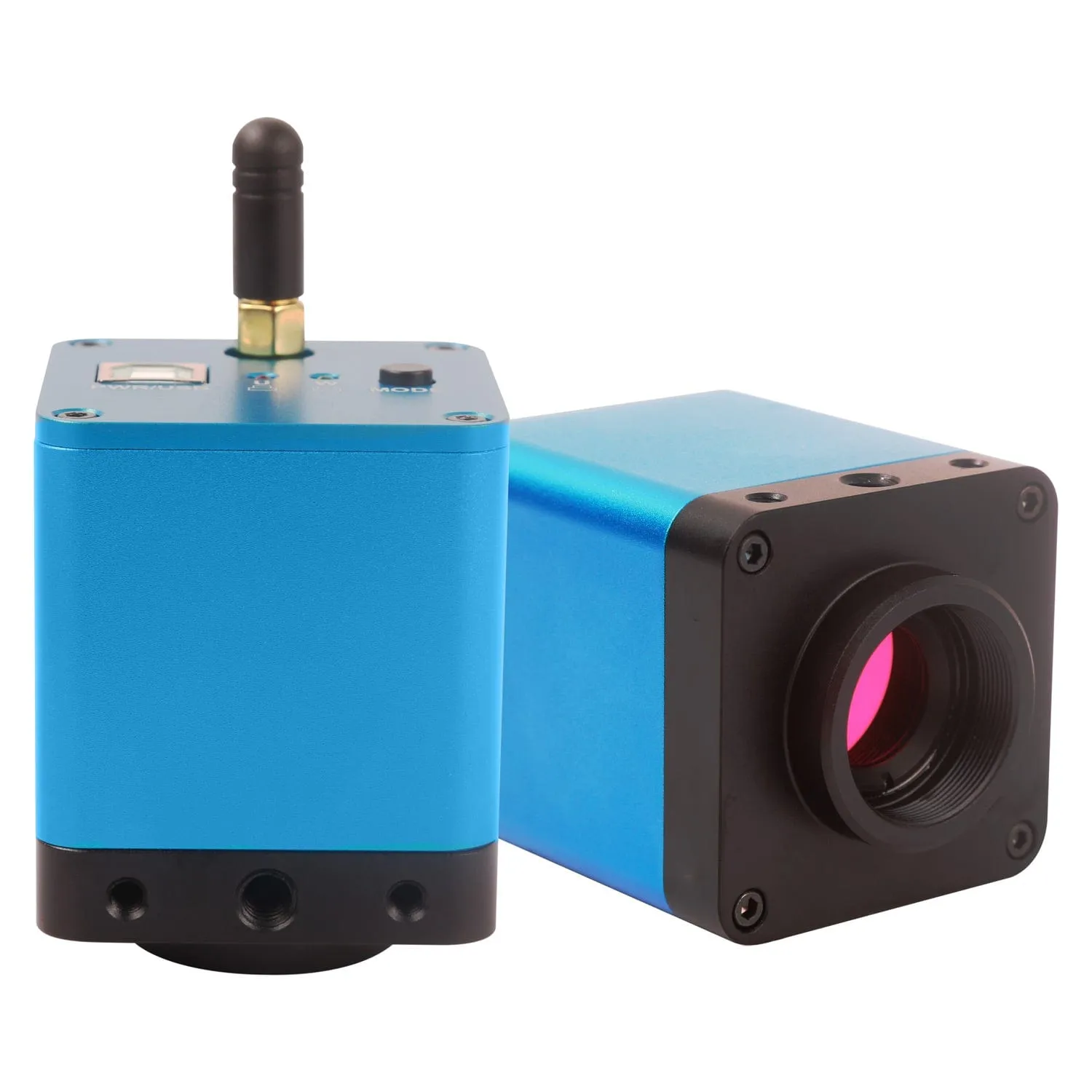

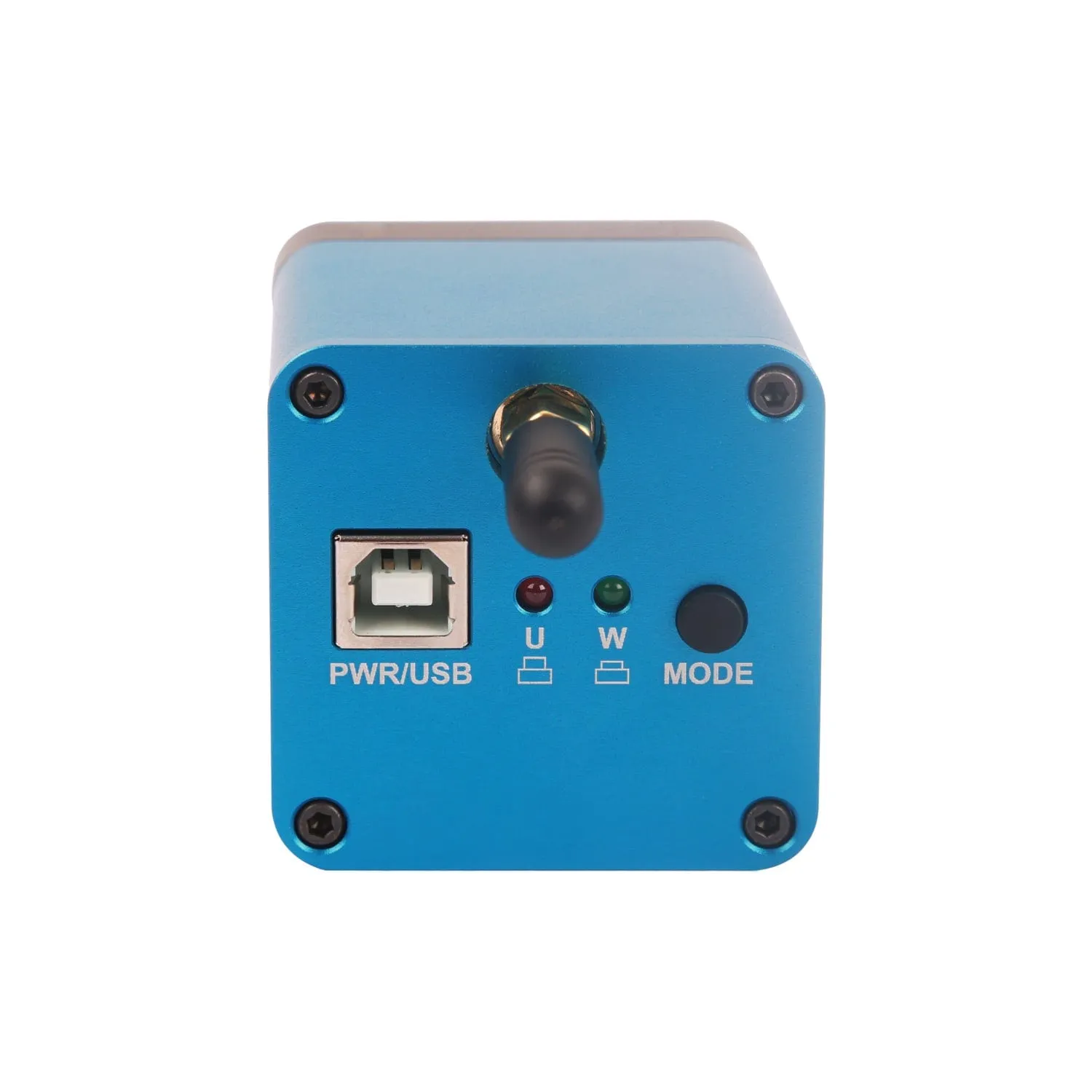

The MU100-WU is a USB-powered 720p WiFi camera delivering video up to 15fps. The camera can be tethered to a computer using a simple USB 2.0 connection, or through WiFi, using USB for power only with the included power adapter. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with the included reduction lens and adapters to mount to 23mm, 30mm, and 30.5mm photo and ocular ports.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Camera Specifications:
Software Specifications:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- gives your computer screens the same field of view as your microscope's eyepiece
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
Contents:
