The slimline lithium battery is the highest quality and the original manufacturers of the slim battery design. Slide it behind a seat, under false floors, in rear drawers. Place the battery in any orientation without the worry of acid leaks. The Slimline battery provides up to 100A of continuous discharge or charge and can be stacked in parallel to increase amp hour storage capacity.

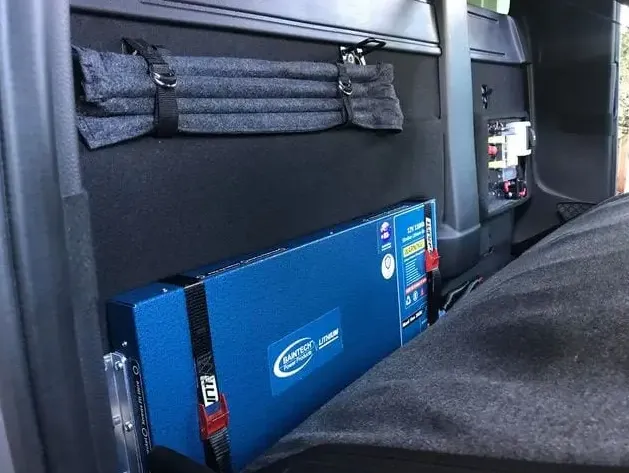

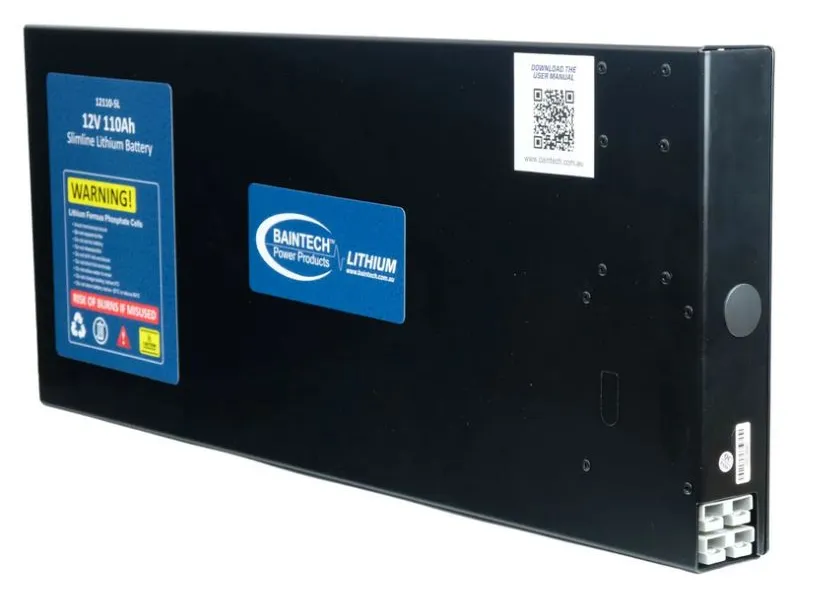

The slimline lithium battery is the highest quality and the original manufacturers of the slim battery design. They've worked countless hours to bring their customers the best technology available in their range of premium 12v batteries. Constructed using the latest lithium iron phosphate cells. These prismatic cells are the highest quality in a metal hard case. The strong aluminium outer enclosure delivers a safe, lightweight and powerful unit which is the perfect building block for next generation battery systems. The battery has an inbuilt Battery Management System (BMS). At just 11kg, the unique slimline shape makes it the perfect battery for installations where space is a premium. Slide it behind a seat, under false floors, in rear drawers. Place the battery in any orientation without the worry of acid leaks. The Slimline battery provides up to 100A of continuous discharge or charge and can be stacked in parallel to increase amp hour storage capacity. Charge and discharge the battery via the two grey Anderson plugs.

For connected chargers and devices, a grey Anderson plug must be used. Check to ensure the Anderson is correctly wired (positive and negative) and do not attempt to use any coloured Anderson other than grey.

NOTE – There are no internal fuses inside the battery so an external fuse must be used for each Anderson connector, 100A maximum. The internal BMS is designed for up to 100A continuous charge and 100A continuous discharge. Please consider this when connecting charging devices and loads.

Product features:

• Internal 100A BMS
• 4x Mounting Brackets Included
• 5 Year Warranty
• Aluminium powder coated enclosure
• 50A grey Anderson connector
• Lightweight at just 14kg
• Connect in parallel: more capacity & power
• Designed and fully assembled in Australia

Product specifications:

• Capacity                              110Ah
• Nominal Voltage                  12.8V
• Type                                     LiFePO4
• Charge Voltage                   14.6V max
• Charge Current                   100A max continuous
• Discharge Current               100A continuous
• Discharge Current                200A peak
• Operating Temp                    0-45oC
• Weight                                  11kg
• Life at 80% DoD                   2,000 cycles
• Life at 50% DoD                   5,000 cycles
• Size (LxDxH)                        635mm x 50mm x 260mm
